Lima Machine Works

Photo Credit:
Left: C. T. Stoner collection
Right George R. Kadelak collection

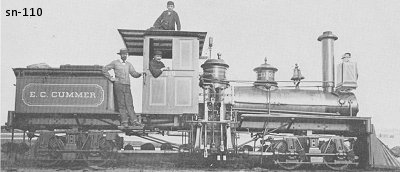

Shop Number 110 - Built for: J. Cummer & Son
{82nd Lima Built Shay}
Built:
5-1-1884
Class:
A
11-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8x8
Gear Ratio:
2.05
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 36"
Boiler Pressure:
In Lbs. (PSI)
100
 Tractive Effort:
3,028 Lbs.
 Factor of
Adhesion:
7.19
Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
660 Gallons
Empty Weight:
As built
15,000
Owners:
J. Cummer & Son, Cadillac & Northeastern RR #110, Cadillac, MI
Cummer Lbr. Co., Cadillac & Northeastern RR #110 "E. C. CUMMER", Cadillac, MI
Disposition: Scrapped
Additional Notes:
