Lima Machine Works

Photo Credit:
George R. Kadelak collection (BP 4-1885)

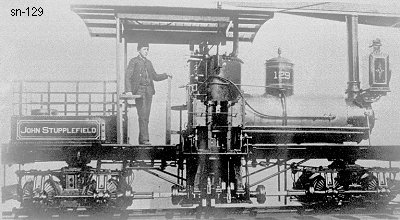

Shop Number 129 - Built for: Briggs & Gregg
{99th Lima Built Shay}
Built:
4-27-1885
Class:
A
9-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7x7
Gear Ratio:
2.05
Wheel Dia.:
21"
Gauge:
28"
Boiler:
[Style - Dia.]
Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
100
 Tractive Effort:
2,511 Lbs.
 Factor of
Adhesion:
6.70
 Maximum
Safe Speed:
12.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
660 Gallons
Empty Weight:
As built
10,000
Owners:
Briggs & Gregg #129 "JOHN STUPPLEFIELD", unknown location [it is not Park City, UT]
Disposition: Scrapped
Additional Notes:
