Lima Machine Works

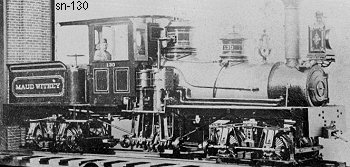

Photo Credit:
Left: by C. B. Savage
- Right: George R. Kadelak collection (BP 5-1885)
Shop Number 130 - Built for: Dyer & White
{100th Lima Built Shay}
Built:
5-14-1885
Class:
A
12-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8x8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
30"
Boiler:
[Style - Dia.]
WT- 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,947 Lbs.
 Factor of
Adhesion:
2.85
 Maximum
Safe Speed:
9.3
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
660 Gallons
Empty Weight:
As built
26,000
Owners:
Dyer & White, Crescent Tramway #130 "MAUD WITHEY", Park City, UT
Crescent Mining Co., Crescent Tramway #1, Park City, UT
(5-17-1900) George M. Dilley & Son (D), Palestine, TX
(1907) [36"] Newell Brothers. Lbr. Co., Braucher, WV
Disposition: Scrapped
Additional Notes: Some records show Cylinders: 2-9x8
