Lima Machine Works

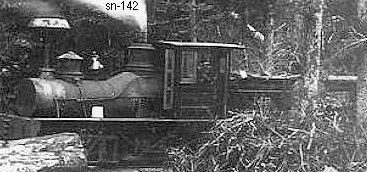

Photo Credit:
John P. Killoran collection
Shop Number 142 - Built for: Frank E. Thompson
{110th Lima Built Shay}
Built:
1-9-1886
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 10x8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
WT.- 36"
Boiler Pressure:
In Lbs. (PSI)
100
 Tractive Effort:
8,034 Lbs.
 Factor of
Adhesion:
4.86
Maximum
Safe Speed:
14.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
660 Gallons
Empty Weight:
As built
30,300
Owners:
Frank E. Thompson #142, Ridgway, PA
Albert & Frank E. Thompson #142, Island Run, PA
Thompson Lbr. Co. #142, Davis, WV
Blackwater Lbr. Co. #142, Davis, WV
Babcock Lbr. & Boom Co. #142, Davis, WV
Disposition: (5-9-1921) Scrapped
Additional Notes: Shipped to: Ridgway, PA
