Lima Locomotive & Machine Co.

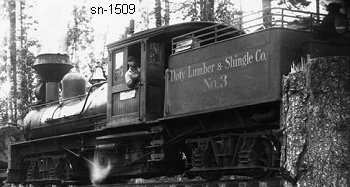

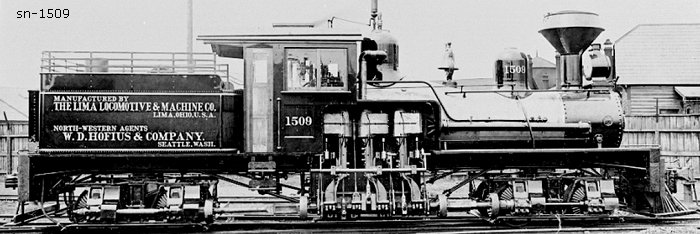

Photo Credit:
Left: Lovewell coll at Washington State Historical Society -
Right:: George R. Kadelak collection (BP 4-1905)

Shop Number 1509 - Built for: W. D. Hofius & Co. (D)
{950th Lima Built Shay}
Built:
4-12-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.76
Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords 3.25 Tons
 Water Capacity:
1,750 Gallons
Empty Weight:
As built
78,600
Owners:
W. D. Hofius & Co. (D) #1509, Seattle, WA
(4-1905) Exhibited at 1905 Lewis & Clark Exhibition, Portland, OR
Doty Lbr. & Shingle Co., Elk Creek & Gray's Harbor RY #3 (1st), Doty, WA
(by 1947) Dulien Steel Products Co. (D), Seattle, WA
(1955) Dulien Steel Products Co. (D), Seattle, WA, (seen at this location)
Disposition: Scrapped
Additional Notes: This was not the Shay converted at Marona Mill Co. to a 2-truck diesel-hydraulic loco switcher.
