Lima Locomotive & Machine Co.

Photo Credit:
George Kadelak collection

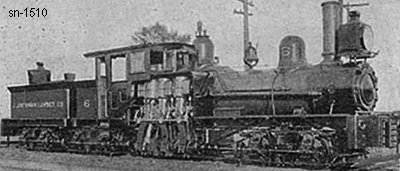

Shop Number 1510 - Built for: J. J. Newman Lbr. Co.
{951st Lima Built Shay}
Built:
5-16-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.77
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
111,200
Owners:
J. J. Newman Lbr. Co. #6 (2nd), Hattiesburg, MS
Disposition: (1936) Scrapped
Additional Notes:
