Lima Locomotive & Machine Co.

Michale Koch collection (as built)

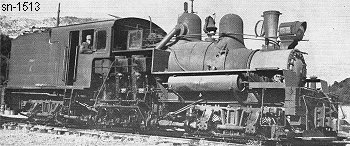

by Roy F. Blackburn (as rebuilt)
by Roy F. Blackburn (as rebuilt)
Shop Number 1513 - Built for: Uintah Ry
{954th Lima Built Shay}
Built:
4-8-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.88
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,200 Gallons
Empty Weight:
As built
75,500
Owners:
Uintah RY Co., Uintah RY #3, Atchee, CO
Disposition: (10-17-1933) Scrapped, many parts used for #7*
Additional Notes: *In October of 1933, Uintah RY Co. used the frame and many other parts from sn-1513, along with a new boiler from Lima, to build the Uintah Railway's No. 7; even assigning an invalid Lima shop number of 3054P to their Shay, which has also caused confusion about the history of the real sn-3054.
