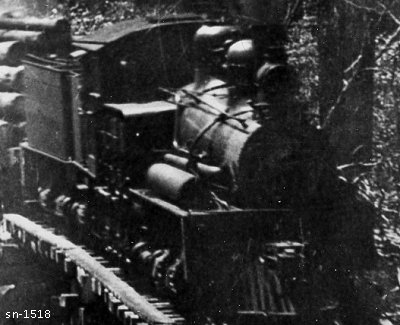

Lima Locomotive & Machine Co.

Photo Credit:
Gary P. Price collection

Shop Number 1518	-	Built for: J. C. Campbell & Co.
{959th Lima Built Shay}

Built: 8-15-1905	Class: C 65-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 12 x 15
Gear Ratio: 2.211	Wheel Dia.: 36"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 46"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 29,835 Lbs.	Factor of Adhesion: 4.70	Maximum Safe Speed: 19.4
Fuel Type: Coal	Fuel Capacity: 5 Tons	Water Capacity: 3,000 Gallons	Empty Weight: As built 110,000
Owners: J. C. Campbell & Co., Marion & Rye Valley RR #10, Marion, VA United States Spruce Lbr. Co., Marion & Rye Valley RR #10, Marion, VA (by 2-2-1920) Kyva-Ferro Manganese Corp., Seven Mile Ford, VA Kyva-Ferro Manganese Corp.,Sugar Grove, VA Graham Furnace Co., Sugar Grove, VA (4-1921) Southern Iron & Equip. Co.(D) #1889, Atlanta, GA (by 4-6-1921) Arkansas-Alabama Lbr. Co. #8, Wetumpka, AL (1925) Foster Creek Lbr. & Mfg. Co. #8, Stephenson, MS (1-1934) Crosby Lbr. & Mfg. Co. #8, Crosby, MS
Disposition: Scrapped
Additional Notes: (6-29-29) 1518 in wreck
