Lima Locomotive & Machine Co.

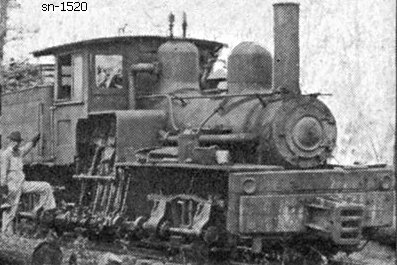

Photo Credit:
H. G. Zimmerman & Co. post card from Murry Hammond collection
Shop Number 1520 - Built for: Sulphur Tbr. & Lbr. Co.
{961st Lima Built Shay}
Built:
5-17-1905
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,517 Lbs.
 Factor of
Adhesion:
4.22
Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
47,080
Owners:
Sulphur Tbr. & Lbr. Co. #1, Winnfield, LA
Grant Tbr. & Mfg.Co. Louisiana RY Co., Selma, LA
(by 3-1-1923) Bomer-Blanks Lbr. Co. #1 (2nd), Blanks, LA
(1943) Higgins Ind. #1, New Orleans, LA
Disposition: Scrapped
Additional Notes:
