Lima Locomotive & Machine Co.

Photo Credit:
From Dan Abbott collection

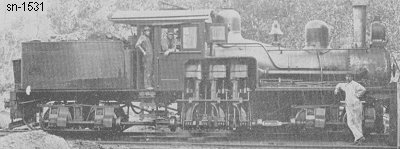

Shop Number 1531	-	Built for: Noland Land & Transfer Co.
{972nd Lima Built Shay}

Built: 7-7-1905	Class: B 45-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 11 x 12
Gear Ratio: 2.21	Wheel Dia.: 32"	Gauge: std.	Boiler: [Style - Dia.] W.T. - 44"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 20,306 Lbs.	Factor of Adhesion: 4.78	Maximum Safe Speed: 17.2
Fuel Type: Coal	Fuel Capacity: 3.25 Tons	Water Capacity: 1,750 Gallons	Empty Weight: As built 76,500
Owners: (Includes new data after 2018 Shay book completed) Noland Land & Transfer Co. #2, Lyons, CO (1914) Operation closed, Shay for sale (7-1914) Allen Coal Co. #2, Coalview, CO Pinnacle Coal Co. #2, Coalview, CO (10-1915) Routt-Pinnacle Coal Co. #2, Coalview, CO (8-1924) No longer in use
Disposition: (after 8-1926) Scrapped
Additional Notes: (10-1922) While attempting to assist in the recovery of sn-319, 1531 left track at same place, hitting 319, further damaging 319
