Lima Machine Works

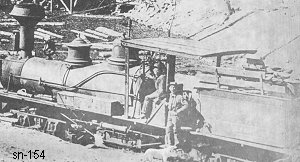

Photo Credit:
Top: Mike Kessler collcetion
- Right: C. W. Witbeck collection
Shop Number 154 - Built for: Butters, Peters & Co.
{121st Lima Built Shay}
Built:
8-7-1886
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T.- 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,179 Lbs.
 Factor of
Adhesion:
4.17
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
41,000
Owners:
Butters & Peters & Co., Mason & Oceana RR #2 (3rd), Ludington, MI
Brookings Lbr. & Box Co. #2, Fredalba, CA
(1911-1912) Johnson & Pollock Lbr. Co. #1, Mount Hebron, CA
(1918) [30"] Mt. Hebron Lbr. Co. #1, Mount Hebron, CA
(9-8-1923 thru 10-6-1926) Stored - For Sale
Disposition: (1937) Scrapped
Additional Notes:
(1920's) Possible use by Siskiyou Lbr. Co., Jerome, CA. not confirmed.
?? owner: (9-10-1918) California & Oregon Lbr. Co., Brookings, OR
