Lima Locomotive & Machine Co.

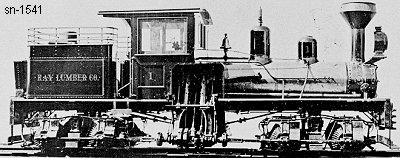

Photo Credit:
George R. Kadelak collection (10-1905)
Shop Number 1541 - Built for: Ray Lbr. Co.
{982nd Lima Built Shay}
Built:
10-25-1905
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
5.11
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood / Coal
 Fuel Capacity:
.75 Cord / 1 Ton
 Water Capacity:
730 Gallons
Empty Weight:
As built
35,500
Owners:
Ray Lbr. Co. #1, Moultonville, NC
J. D. Johnson, Garland, NC
(1-1920) Southern Drainage & Lbr. Co. #1, Hunter, AR
(10-15-1926) For sale
Disposition: Scrapped
