Lima Locomotive & Machine Co.

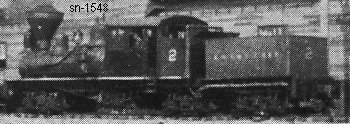

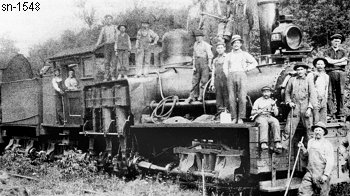

Photo Credit:
Left: Evan Quinn collection
Right: Thomas T. Taber collection
Shop Number 1548 - Built for: Chapman Iron, Coal & Coke Co.
{989th Lima Built Shay}
Built:
8-14-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
29,835 Lbs.
Factor of
Adhesion:

4.63
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
107,700
Owners:
Chapman Iron, Coal & Coke Co. #9, Rich Patch, VA
Southern Cambria RY Co., Johnstown, PA
(c1910) Emporium Lbr. Co. #9, Galeton, PA
(1916-17) Emporium Forestry Co. #39, Conifer, NY
(12-11-1926) Emporium Forestry Co. #39, Cranberry Lake, NY
(6-3-1929) Keystone Wood Chemical & Lbr. Co. Glenfield & Western RR #2, Glenfield, NY
Disposition: (late 1930's) Scrapped
Additional Notes:
