Lima Locomotive & Machine Co.

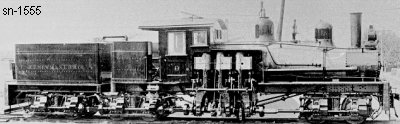

Photo Credit:
George R. Kadelak collection
Shop Number 1555 - Built for: J. J. Newman Lbr. Co.
{996th Lima Built Shay}
Built:
10-11-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.63
Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
Fuel Capacity:
2.5 Cords / 5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
107,700
Owners:
J. J. Newman Lbr. Co. #9 (2nd), Sumrall, MS
Disposition: (1931) Scrapped at Hattiesburg after mill cut out.
Additional Notes:
