Lima Locomotive & Machine Co.

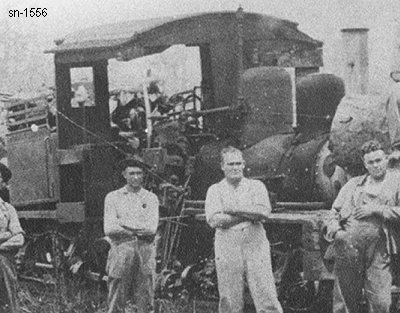

Photo Credit:
Alabama Department of Archives & History
Shop Number 1556 - Built for: T. J. Asher & Son
{997th Lima Built Shay}
Built:
7-29-1905
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.500
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

ST. - 28"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,602 Lbs.
Factor of
Adhesion:

6.21
Maximum
Safe Speed:

10.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
24,200
Owners:
T. J. Asher & Sons #2, Pennington Gap, VA; For:
Banks & Taylor #2, Pennington Gap, VA
Whaley-Reed Lbr. Co., Rosspoint, KY
Birmingham Rail & Loco. Co. (D) #1156, Birmingham, AL
(8-14-1917) Chambliss & Rawlinson #2, Eclectic, AL
(10-6-1920) For sale
Disposition: (1928) Scrapped
Additional Notes:
