Lima Locomotive & Machine Co.

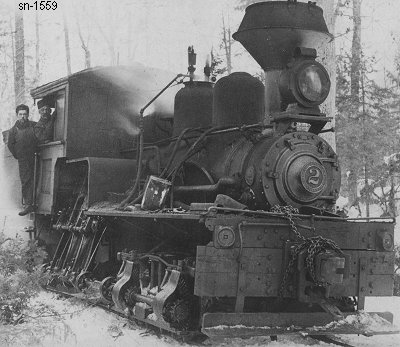

Photo Credit:
Ontonagon MI Historical Society collection
Shop Number 1559 - Built for: C. H. Worcester Co.
{1,000th Lima Built Shay}
Built:
8-11-1905
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
5.05
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood / Coal
Fuel Capacity:
1 Cord / 1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
44,000
Owners:
C. H. Worcester Co. #1, Chassell, MI
(by 1908) Worcester Lbr. Co., #1, Chassell, MI
(5-22-1909) Worcester Lbr. Co., Houghton, Chassell & Southwestern RY #1 (1st), Chassell, MI
(4-28-1919) Greenwood Lbr. Co. #2, Ontonagon, MI
Disposition: Scrapped
Additional Notes:
