Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 9-1905)

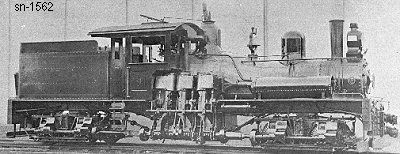

Shop Number 1562 - Built for: Rust-Owen Lbr. Co.
{1,003rd Lima Built Shay}
Built:
9-23-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.95
Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
 Water Capacity:
2,400 Gallons
Empty Weight:
As built
79,700
Owners:
Rust-Owen Lbr. Co., Drummond & Southwestern RY #4, Drummond, WI
Disposition: Scrapped
Additional Notes:
