Lima Locomotive & Machine Co.

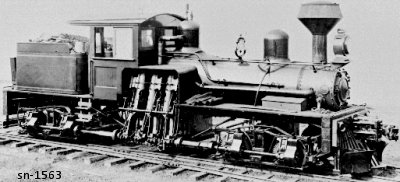

Photo Credit:
George R. Kadelak collection
Shop Number 1563 - Built for: Cleveland Sarnia Sawmill Co.
{1,004th Lima Built Shay}
Built:
10-10-1905
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,157 Lbs.
 Factor of
Adhesion:
4.02
 Maximum
Safe Speed:
10.9
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.75 Cords / 1.75 Tons
 Water Capacity:
1,000 Gallons
Empty Weight:
As built
49,800
Owners:
Cleveland Sarnia Sawmill Co., Diver and Ottawa River RY #13, North Bay, Ontario, CAN
(10-1915) Sable River Lbr. Co., Sable River, Nova Scotia, CAN
McLean Lbr. Co., Liverpool, Nova Scotia, CAN
(3-20-1926) Sold to unknown owner
Disposition: Scrapped
Additional Notes: Converted to oil burner
