Lima Locomotive & Machine Co.

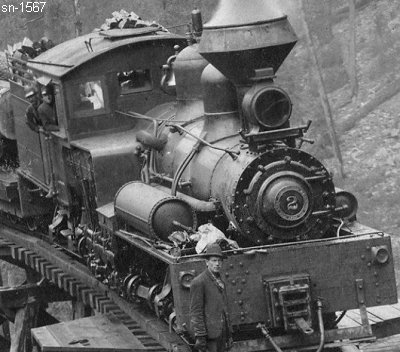

Photo Credit:
Robert Eagle collection
Shop Number 1567 - Built for: Norman B. Livermore (D)
{1,008th Lima Built Shay}
Built:
1-26-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.81
Maximum
Safe Speed:

17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
89,600
Owners:
Norman B. Livermore (D), San Francisco, CA
LaMoine Lbr. & Trading Co. #2, LaMoine, CA
(1923) Castle Crag Lbr. Co. #2, Dirigo, CA
(10-16-1923) Converted to oil burner
Scrapped by C. C. C., boiler used in C. C. C. Camp
Disposition: (1976) Scrapped remaining parts
Additional Notes: LaMoine, CA was location name in 1906, later changed to Lamoine, CA
(9-9-1921) Lima visit: In wreck, but has been rebuilt
Norman Livermore ordered this locomotive from stock, and as a standard gauge version. He then sold it to LaMoine before it left Lima, and was converted to 36-inch gauge by the Lima factory.
