Lima Locomotive & Machine Co.
Photo Credit:

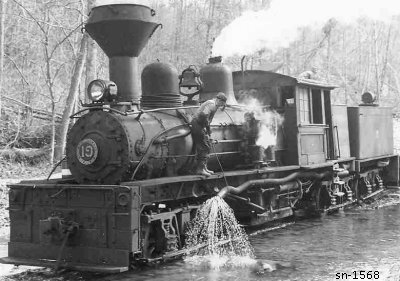

Left: by Andrew Wittenborn

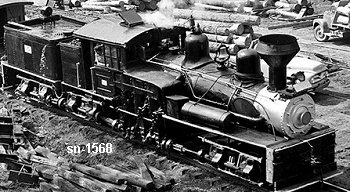

Right: by Tom Sink (c1963)
Shop Number 1568 - Built for: Tioga Lbr. Co.
{1,009th Lima Built Shay}
Built:
9-16-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3-12x15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
EWT. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,853 Lbs.
 Factor of
Adhesion:
4.76
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
111,700
Owners:
Tioga Lbr. Co., Strouds Creek & Muddlety RR #2, Tioga, WV
(1916) Birch Valley Lbr. Co., Strouds Creek & Muddlety RR #2, Tioga, WV
(9-15-1944) Sutton Co. Inc. #2, Richwood (?Hookersville), WV
(12-14-1949) Cherry River Boom & Lbr. Co. #2 (3rd), Richwood, WV
(1958) Elk River Coal & Lbr. Co., Buffalo Creek & Gauley RR #19, Swandale, WV
(1958) W. M. Ritter Lbr. Co. #19, Swandale, WV
(1961) Georgia-Pacific Corp. #19, Swandale, WV
(1964) Stuart T. Kime, (Dry Gulch Junction, Inc.) Wytheville, VA
(c2000) Veterans Park, Harrod, OH
Disposition: Veterans Park, Harrod, OH
Additional Notes: new boiler 4-5-1927
