Lima Machine Works

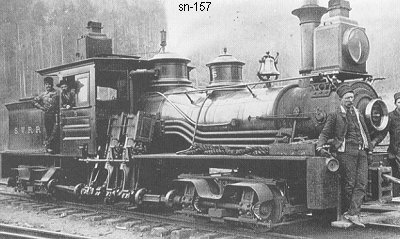

Photo Credit:
Walter Casler collection
Shop Number 157 - Built for: F.H. & C.W. Goodyear
{124th Lima Built Shay}
Built:
8-10-1886
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11x10
Gear Ratio:
2.050
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
17,027 Lbs.
 Factor of
Adhesion:
3.73
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,140 Gallons
Empty Weight:
As built
49,000
Owners:
F.H. & C.W. Goodyear, Sinnemahoning Valley RR #5 (1st), Austin, PA
Lima Locomotive & Machine Co. (B), Lima, OH; Rebuilt for:
(3-31-1893) Ehrman & Merritt #2 "BIG MACK", Clanton, AL
Swift Creek Lbr. Co., Swift Creek, AL
(1-1900) Southern Iron & Equip.t Co. (D) #159, Atlanta, GA *
(10-10-1902) Pickering Lbr. Co., #7, Hornbeck, LA
Pickering Land & Tbr. Co. #7, Neame, LA
(10-19-1920) Gulf Cooperage Co., Wilmot, AR
Disposition: Scrapped
Additional Notes: F.H. Goodyear was Frank Henry Goodyear
* Owned by Dealer
