Lima Locomotive & Machine Co.

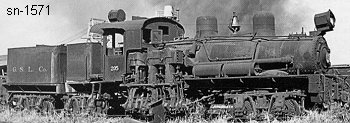

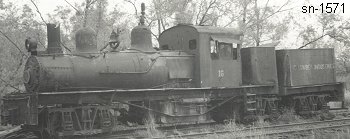

Photo Credit:
Left: Marc Reusser collection - Right: by C. W. Whitbeck collection.
Shop Number 1571 - Built for: Great Southern Lbr. Co.
{1,012th Lima Built Shay}
Built:
11-18-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.21
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
EWT. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
29,835 Lbs.
 Factor of
Adhesion:
4.62
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
Fuel Capacity:
2.5 Cords / 5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
107,600
Owners:
Great Southern Lbr. Co.; For:
Pearl River Lbr. Co., Brookhaven & Pearl River RY #101, Brookhaven, MS
(1910) Great Southern Lbr. Co. #205, Bogalusa, LA,
(10-14-1925) Great Southern Lbr. Co. #205, Georgetown, MS
(6-26-1926) Great Southern Lbr. Co. #205, Marston, LA
(3-15-1927) Great Southern Lbr. Co. #205, Hoods, LA
(c1938) Denkmann Lbr. Co. #16 (2nd), Canton, MS
(1-1-1946) King Lbr. Ind. #16, Canton, MS
Disposition: (c1948) Scrapped
Additional Notes: When first built, was lettered for New Orleans Great Northern Ry. Co. by Lima but first used by Pearl River Lbr. Co. at Brookhaven, an affiliate of Great Southern Lbr. Co.
