Lima Locomotive & Machine Co.

Photo Credit:
Steve Hauff collection

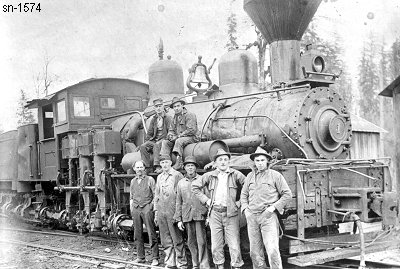

Shop Number 1574 - Built for: Lochsloy Tbr. Co.
{1,015th Lima Built Shay}
Built:
12-18-1905
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
29,835 Lbs.
Factor of
Adhesion:

4.61
Maximum
Safe Speed:

19.4
Fuel Type:
Wood
Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
112,100
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Lochsloy Tbr. Co. #1, Hartford, WA
(8-23-1918) Star Log. Co., Hartford, WA
Lochsloy Tbr. Co. #1, Lochsloy, WA
(5-7-1922) For sale
Hofius Steel & Equip. Co. (D), Seattle, WA
(4-3-1923) Chehalis River Log. Co., Independence, WA
(1-21-1928) For sale
(1-26-1928) Markham & Callow, Inc. #1, Independence, WA
(12-11-1930) Markham & Callow, Inc. #1, Nehalem, OR
Alaska Junk Co. (D), Portland, OR
Disposition: (9-24-1937) Scrapped
Additional Notes:
