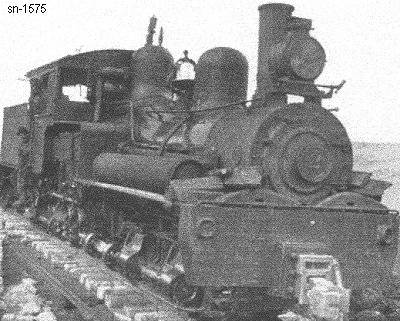

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection
Shop Number 1575 - Built for: Waldorf Mining & Milling Co.
{1,016th Lima Built Shay}
Built:
11-18-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.78
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
76,500
Owners:
Waldorf Mining & Milling Co. #2, Denver, CO, For:
Argentine Central RY Co., Argentine Central RY #2, Silver Plume, CO
(1909) Uintah Ry Co., Uintah RY #4, Atchee, CO
Disposition: (4-1928) Scrapped
Additional Notes:
