Lima Locomotive & Machine Co.

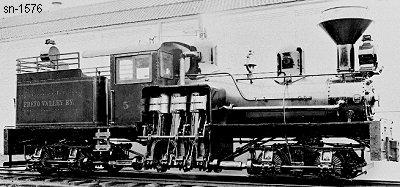

Photo Credit:
George R. Kadelak collection (BP 9-1905)
Shop Number 1576 - Built for: Eagle Lbr. Co.
{1,017th Lima Built Shay}
Built:
9-9-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
4.20
 Maximum
Safe Speed:
13.9
Fuel Type:
Wood / Coal
Fuel Capacity:
1.5 Cords / 2 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
66,800
Owners:
Eagle Lbr. Co., Freeo Valley RR #5, Eagle Mills, AR
Loutre Lbr. Co. #5 later #7, Cargile, AR
(11-16-1925) For sale
(6-24-1927) Sipsey Valley Lbr. Co. #7, Buhl, AL
Disposition: Scrapped 4-1928
Additional Notes: (3-23-1931) Lima visit at Buhl note; All 5 Shays are on hand (852, 1576, 2010, 2385, 3099)
