Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 9-1905)

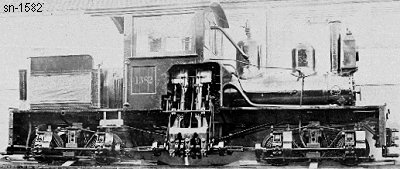

Shop Number 1582 - Built for: Halster & Miller
{1,023rd Lima Built Shay}
Built:
9-27-1905
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,529 Lbs.
Factor of
Adhesion:

5.68
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
21,400
Owners:
Halster & Miller #1582, Marmet, WV
Joe Creek Lbr. Co., Comfort, WV
(by 2-13-1919) Robert Mankin Lbr. Co., Fireco, WV
Elliot Tolbert Lbr. Co., Winding Mill, WV
Tolbert Smokeless Coal Co., Mabscott, WV
(9-1926) Crab Orchard Fuel Co. #1, Mabscott, WV
(by 2-2-1930) Lilly & Hornbrook, Inc. #1, Mabscott, WV
Disposition: Scrapped
Additional Notes: Lettered Halster & Miller Log. Contractors
