Lima Locomotive & Machine Co.

Photo Credit:

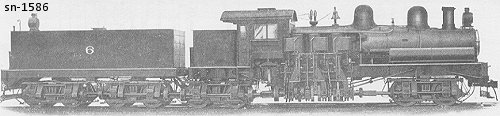

Top: George R. Kadelak collection

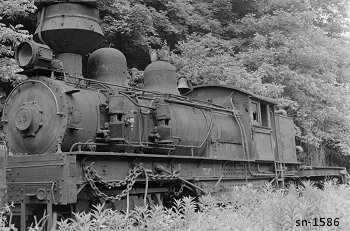

Left: Max S. Robin, P. E. collection - Right: C. E. Armstrong collection
Shop Number 1586 - Built for: Chesapeake & Ohio RY
{1,027th Lima Built Shay}
Built:
3-28-1906
Class:
D
150-4
Trucks:
4
Cylinders:
[#-Dia. x Stroke]
3 - 17 x 18
Gear Ratio:
2.05
Wheel Dia.:
46"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 62.325"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
52,161 Lbs.
Factor of
Adhesion:

6.00
Maximum
Safe Speed:

26.7
Fuel Type:
Coal
Fuel Capacity:
9 Tons
Water Capacity:
8,000 Gallons
Empty Weight:
As built
243,250
Owners:
Chesapeake & Ohio RY Co., Chesapeake & Ohio RY #6, Thurmond, WV
(2-1924) West Virginia Pulp & Paper Co., Greenbrier, Cheat & Elk RR #13, Cass, WV
(10-1928) West Virginia Pulp & Paper Co. #13, Cass, WV
(3-1942) Retired from service
(6-15-1942) Mower Lbr. Co. #13, Cass, WV, however not in service
Disposition: (c1957) Scrapped
Additional Notes:
