Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 9-1905)

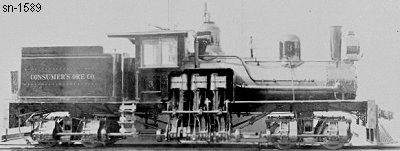

Shop Number 1589 - Built for: Consumers Ore Co.
{1,030th Lima Built Shay}
Built:
9-30-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
 Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.07
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
64,450
Owners:
Consumers Ore Co. #3, Mt. Iron, MN
(by 10-9-1918) Hanna Ore Mining Co. #3 (?#2), Mt. Iron, MN
(9-1-1925) Ohio & Michigan Sand & Gravel Co. #3, Chilson, MI, For:
(9-1-1925) The Cadillac Sand & Gravel Co. #3, Ann Arbor, MI
Disposition: Scrapped
Additional Notes:
