Lima Locomotive & Machine Co.

(BP 10-1905)

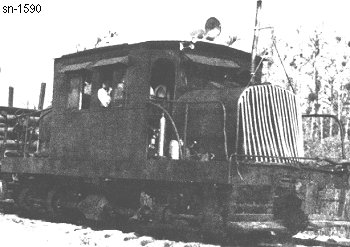

Photo Credit:
Both: George R. Kadelak collection
Shop Number 1590 - Built for: Burton-Swartz Cypress Co.
{1,031st Lima Built Shay}
Built:
10-24-1905
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

S.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,292 Lbs.
Factor of
Adhesion:

5.25
Maximum
Safe Speed:

10.7
Fuel Type:
Wood / Coal
Fuel Capacity:
1 Cord / 1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
43,800
Owners:
Burton-Swartz Cypress Co. #3, Carbur, FL
(11-15-1921) Carbur Log. Co., Carbur, FL
(5-22-1928) Burton-Swartz Cypress Co., Carbur, FL
(1943) Lee Cypress Co. #3, Perry, FL
Lee Cypress Co. #3, Copeland, FL
Lee Tidewater Cypress Co. #3, Copeland, FL
Converted to diesel power
(1957) Howard Nelson & Ed Nelson of MS; For logging operations on Turio River, Colombia, SA
(by 3-1961) Empresa Maderera del Atrato "ANGELITA", Barran Ovilla, Colombia, SA
Disposition: Scrapped
Additional Notes:
