Lima Locomotive & Machine Co.

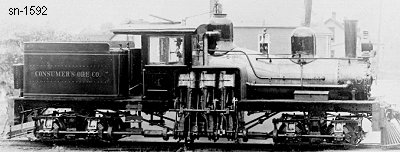

Photo Credit:
George R. Kadelak collection (BP 9-1905)
Shop Number 1592 - Built for: Consumers Ore Co.
{1,033rd Lima Built Shay}
Built:
9-30-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.07
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
64,450
Owners:
Consumers Ore Co. #4, Buhl, MN
(6-30-1920) Hanna Ore Mining Co., Buhl, MN
J. A. Moore. Brockville, OH
D. C. Bowman, Engineering & Contractor Co., Louisville, MO
(2-26-1930) Rock Hill Quarries, Rock Hill, MO
Disposition: Scrapped
Additional Notes:
