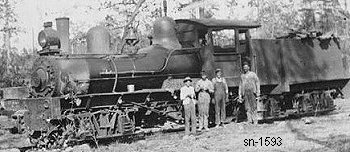

Lima Locomotive & Machine Co.
Photo Credit:
Left: Texas Transportation Archives
Right: George R. Kadelak collection
Shop Number 1593 - Built for: South Arkansas Lbr. Co.
{1,034th Lima Built Shay}
Built:
11-18-1905
Class:
C
55-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
5.31
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
Fuel Capacity:
2 Cords / 5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
99,520
Owners:
South Arkansas Lbr. Co., Shreveport, Jonesboro & Natchez RY #52, Jonesboro, LA
(by 10-9-1918) St. Tammany Lbr. & Mfg. Co. #52, Ramsey, LA
(1919) General Equip. Co. (D), New Orleans, LA
(6-6-1919) Powell Lbr. Co. #1, Leesville, LA
(by 12-17-1926) Weber-King Mfg. Co. #1 later #13, (Weber-King Lbr. Co.) Leesville, LA
Disposition: Scrapped
Additional Notes:
