Lima Locomotive & Machine Co.

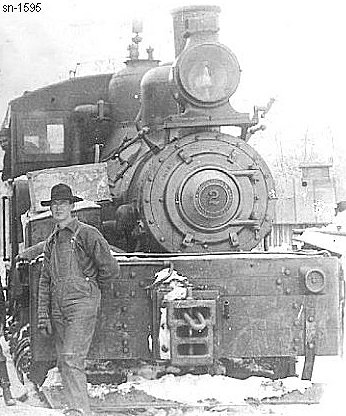

Photo Credit:
David Thomas collection
Shop Number 1595 - Built for: Wildell Lbr. Co.
{1,036th Lima Built Shay}
Built:
11-25-1905
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.259
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
18,290 Lbs.
Factor of
Adhesion:

4.00
Maximum
Safe Speed:

13.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
59,000
Owners:
Wildell Lbr. Co., #2, Wildell, WV
(7-13-1919) Caflisch Lbr. Co. #1, Albright, WV
(12-10-1925) Kendall Lbr. Co. #1, Albright, WV
(7-9-1929) Caflisch Lbr. Co. #1, Albright, WV
(8-27-1936) West Virginia Mine Supply Co. (D), Clarksburg, WV
(8-27-1936) For sale
Disposition: Scrapped
Additional Notes:
