Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

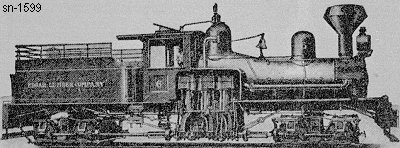

Shop Number 1599 - Built for: Edgar Lbr. Co.
{1,040th Lima Built Shay}
Built:
10-31-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.259
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
21,948 Lbs.
Factor of
Adhesion:

3.93
Maximum
Safe Speed:

13.2
Fuel Type:
Wood / Coal
Fuel Capacity:
1.5 Cords / 2 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
65,100
Owners:
Edgar Lbr. Co., Cornie Valley RR #6, Wesson, AR
(1-19-1927) Lyon Lbr. Co., Garyville & Northern RR #6, Garyville, LA
Disposition: Scrapped
Additional Notes:
