Lima Locomotive & Machine Co.

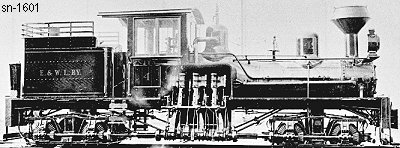

Photo Credit:
George R. Kadelak collection (BP 11-1905)
Shop Number 1601 - Built for: Davis Brothers Lbr. Co.
{1,042nd Lima Built Shay}
Built:
11-7-1905
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,517 Lbs.
 Factor of
Adhesion:
4.52
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,275 Gallons
Empty Weight:
As built
48,700
Owners:
Davis Brothers Lbr. Co., East & West Louisiana RR #4, Ansley, LA
(2-9-1925) For sale
Disposition: (3-1929) Scrapped
Additional Notes:
