Lima Locomotive & Machine Co.

Photo Credit:
David Price collection (c1919)

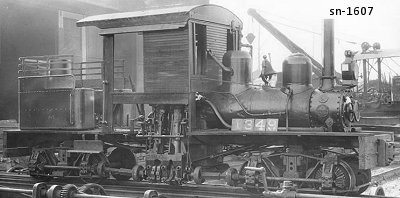

Shop Number 1607 - Built for: Pine Hill Lbr. Co.
{1,048th Lima Built Shay}
Built:
11-11-1905
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,529 Lbs.
 Factor of
Adhesion:
5.92
Maximum
Safe Speed:
10.6
Fuel Type:
Wood / Coal
 Fuel Capacity:
.33 Cord / .75 Tons
 Water Capacity:
400 Gallons
Empty Weight:
As built
23,000
Owners:
Pine Hill Lbr. Co. #3, Wautubbe, MS
(4-1910) B. C. Lbr. Co., Wautubbe, MS
(11-1912) Bostick Brothers, Wautubbe, MS
(3-1913) Ruby Lbr. Co., Wautubbe, MS
John Lindsey Lbr. Co. #2, Laurel, MS
Southern Iron & Equip. Co. (D) #1349, Atlanta, GA
(3-19-1919) Gulf Naval Stores Co. (United Fruit Co.), New Orleans, LA
Disposition: Scrapped
Additional Notes:
