Lima Locomotive & Machine Co.

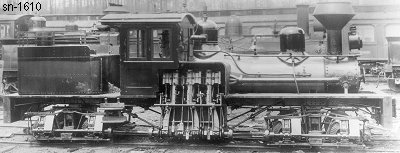

Photo Credit:
SI&E photo from Marc Reusser collection (4-1916)
Shop Number 1610 - Built for: W. L. Robinson Lbr. Co.
{1,051st Lima Built Shay}
Built:
12-9-1905
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,517 Lbs.
 Factor of
Adhesion:
3.88
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
850 Gallons
Empty Weight:
As built
43,400
Owners:
W. L. Robinson Lbr. Co. #1, Gloster, MS
Valley Lbr. Co. #1, Gloster, MS
(8-1913) Southern Iron & Equip. Co. (D) #939, Atlanta, GA
(4-11-1916) Bowie Lbr. Co., Bowie, Lafourche & Northwestern RY #9, Bowie, LA
Disposition: Scrapped
Additional Notes:
