Lima Locomotive & Machine Co.

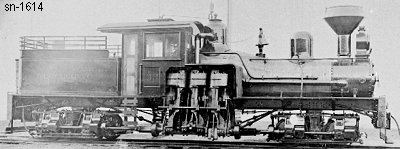

Photo Credit:
George R. Kadelak collection (BP 11-1905)
Shop Number 1614 - Built for: Polson Log. Co.
{1,054th Lima Built Shay}
Built:
11-25-1905
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.73
Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
Fuel Capacity:
2 Cords / 3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
75,500
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Polson Log. Co. #33, Railroad Camp, WA
Disposition: (1947) Scrapped
Additional Notes: Scrapped before Rayonier, Inc. took over in 1948
