Lima Locomotive & Machine Co.
Photo Credit:
Left: Marc Reusser collection - Right: John Henderson collection

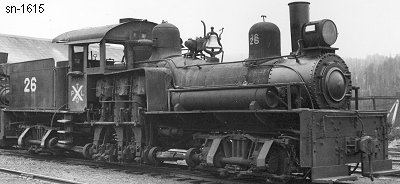

Shop Number 1615 - Built for: The Pacific Lbr. Co.
{1,055th Lima Built Shay}
Built:
7-14-1906
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
21,481 Lbs.
 Factor of
Adhesion:
5.53
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
Fuel Capacity:
2 Cords / 3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
94,700
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
The Pacific Lbr. Co., #26, Scotia, CA
Disposition: (1950) Scrapped
Additional Notes:
