Lima Locomotive & Machine Co.

(1926)
Photo Credit:
Both: George Kadelak collection

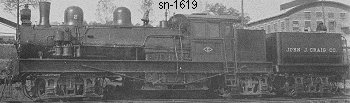

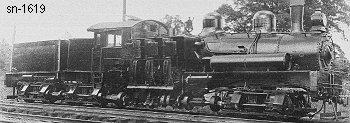

Shop Number 1619 - Built for: Lake Superior & Ishpeming RY
{1,059th Lima Built Shay}
Built:
5-5-1906
Class:
C
130-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 17 x 18
Gear Ratio:
2.05
Wheel Dia.:
46"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 62.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
52,161 Lbs.
 Factor of
Adhesion:
4.99
Maximum
Safe Speed:
26.7
Fuel Type:
Coal
Fuel Capacity:
9 Tons
Water Capacity:
4,000 Gallons
Empty Weight:
As built
207,920
Owners:
Lake Superior & Ishpeming RY Co., Lake Superior & Ishpeming RY #1 (2nd), Marquette, MI
(1-4-1924) Southern Iron & Equip. Co. (D) #1906, Atlanta, GA
(by 3-2-1926) Gainesville & Northwestern RR Co.,Gainesville & North Western #2, Gainesville, GA
Southern Iron & Equip. Co. (D) #2035, Atlanta, GA
(12-8-1926) John J. Craig Co. #2, Friendsville, TN
Disposition: Scrapped
Additional Notes:
