Lima Locomotive & Machine Co.

Photo Credit:

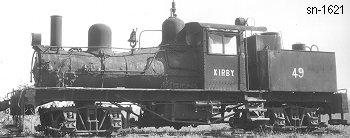

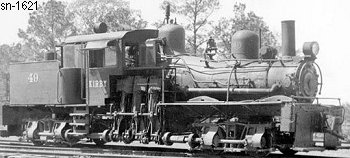

Left: by C. W. Whitbeck (11-1949) - Right: Texas Transportation Archives
Shop Number 1621 - Built for: Kirby Lbr. Co.
{1,061st Lima Built Shay}
Built:
12-22-1905
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.80
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
66,300
Owners:
Kirby Lbr. Co. #49, Steep Creek, TX
(10-27-1919) Kirby Lbr. Co. #49, Browndel, TX
Kirby Lbr. Co. #49, Bronson, TX
Disposition: (1951) Scrapped at Voth, TX
Additional Notes:
