Lima Locomotive & Machine Co.

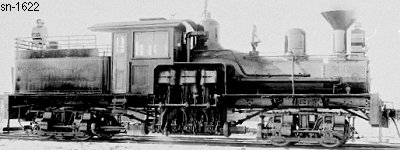

Photo Credit:
George R. Kadelak collection (BP 1-1906)
Shop Number 1622 - Built for: Kirby Lbr. Co.
{1,062nd Lima Built Shay}
Built:
1-11-1906
Class:
B
45-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.61
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
76,500
Owners:
Kirby Lbr. Co., #50, Browndell, TX
(1-21-1921) Kirby Lbr. Co. #50, Silsbee, TX
Kirby Lbr. Co. #50, Roganville, TX
(4-13-1926) Kirby Lbr. Co. #50, Bon Weir, TX
(9-20-1928) Kirby Lbr. Co. #50, Blox, TX
Disposition: (7-8-1929) Scrapped
Additional Notes:
