Lima Locomotive & Machine Co.

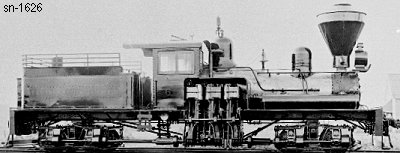

Photo Credit:
George R. Kadelak collection (BP 1-1906)
Shop Number 1626 - Built for: Eastern & Western Lbr. Co.
{1,066th Lima Built Shay}
Built:
1-16-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
30.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,333 Lbs.
 Factor of
Adhesion:
5.32
 Maximum
Safe Speed:
17.7
Fuel Type:
Wood
Fuel Capacity:
1.75 Cord
Water Capacity:
2,000 Gallons
Empty Weight:
As built
69,590
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Eastern & Western Lbr. Co. #6, Molalla, OR
The Eufaula Co. #6, Kelso, WA
The Eufaula Co. #6, Eufaula, WA
(9-2-1930) La Dee Log. Co. #6, Estacada, OR
Disposition: Scrapped
Additional Notes:
