Lima Locomotive & Machine Co.

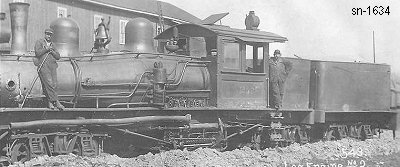

Photo Credit:
David Thomas collection
Shop Number 1634 - Built for: Tolbard & Spiker
{1,074th Lima Built Shay}
Built:
6-15-1906
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
29,835 Lbs.
Factor of
Adhesion:

4.73
Maximum
Safe Speed:

19.4
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,200
Owners:
Tolbard & Spiker #2, Mill Creek, WV
Tygarts River Lbr. Co., Mill Creek & Addison RR #2, Mill Creek, WV
Parsons Pulp & Lbr. Co. #9 (?#1634), Ravensford, NC
(10-1919) Whitmer Parsons Pulp & Lbr. Co. #1634, Ravensford, NC
Disposition: (1935) Scrapped at Ela, NC; Boiler used as a stationary power boiler in a Dutch Oven Furnace
Additional Notes:
