Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

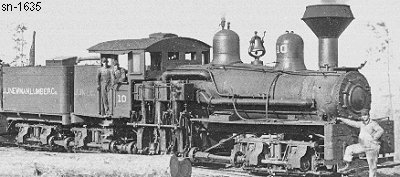

Shop Number 1635 - Built for: J. J. Newman Lbr. Co.
{1,075th Lima Built Shay}
Built:
2-22-1906
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,852 Lbs.
 Factor of
Adhesion:
4.98
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
Fuel Capacity:
2 Cords / 5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
102,700
Owners:
J. J. Newman Lbr. Co. #10 (2nd), Hattiesburg, MS
J. J. Newman Lbr. Co. #10 (2nd), Sumrall, MS
Disposition: (1938) Scrapped
Additional Notes: (1-20-31) May be one of two Shays sold to Amtorg Trading Corp., New York City, NY for shipment to USSR
