Lima Locomotive & Machine Co.

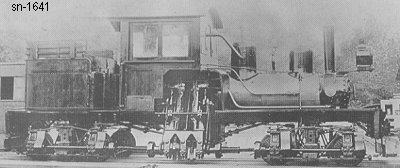

Photo Credit:
Birmingham Rail & Locomotive Company Archives (1911)
Shop Number 1641 - Built for: W. D. Kimball Lbr. Co.
{1,081st Lima Built Shay}
Built:
1-27-1906
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,529 Lbs.
Factor of
Adhesion:

6.10
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
23,300
Owners:
W. D. Kimball Lbr. Co. #63, Hamburg, AL
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(5-31-1911) Memphis Lbr. & Shingle Co., Arcola, MS
Arcola Hardwood Lbr. Co., Arcola, MS
(1913) Arkadelphia Milling Co. #63, Sparkman, AR
(12-12-1920) Sparkman Hardwood Lbr. Co. #1, Sparkman, AR
(8-11-1921) G. C. Holston #1, Louetta, TX
(12-15-1924) Keefer Lbr. Co. #63, Keefer, TX
Disposition: (11-16-1929) Scrapped at Keefer, TX
Additional Notes:
