Lima Locomotive & Machine Co.

Photo Credit:
by H.T. Loudy

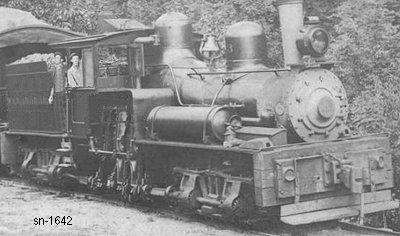

Shop Number 1642 - Built for: Thompson Greer & Co.
{1,082nd Lima Built Shay}
Built:
3-7-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.07
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
64,900
Owners:
Thompson Greer & Co. (Greer Contracting Co.) #10, Buhl, MN
W. M. Ritter Lbr. Co., Smoky Mountain RY #3 (1st), Proctor, NC
(4-1913) Alaculsy Lbr. Co. #4, Conasauga, TN
(6-1917) Tennga Lbr. Co. #4, Conasauga, TN
Southern Iron & Equip. Co. (D) #1463, Atlanta, GA
(10-4-1919) Alexander T. Gilmer Lbr. Co. #8, Remlig, TX
(3-27-1926) For sale
Disposition: Scrapped
Additional Notes:
