Lima Locomotive & Machine Co.

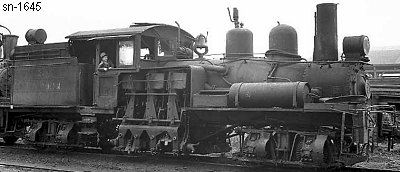

Photo Credit:
by unknown
Shop Number 1645 - Built for: Thompson Greer & Co.
{1,085th Lima Built Shay}
Built:
3-7-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
5.07
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
64,900
Owners:
Thompson Greer & Co. (Greer Contracting Co.) #13, Buhl, MN
Forster-Mueller Lbr. Co., Hiles, WI
Charles Fish Lbr. Co., Hiles, WI
(1-1919) Birmingham Rail & Loco. Co. (D) #1235, Birmingham, AL *
(6-23-1919) W. G. Mitchell Lbr. Co. #25, Shortleaf (Demopolis), AL
Disposition: Scrapped
Additional Notes: * Owned by Dealer
