Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

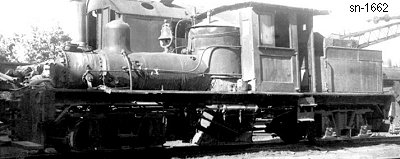

Shop Number 1662 - Built for: Kelley Island Lime & Transport Co.
{1,102nd Lima Built Shay}
Built:
4-10-1906
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
5,986 Lbs.
 Factor of
Adhesion:
6.78
 Maximum
Safe Speed:
14.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
690 Gallons
Empty Weight:
As built
34,300
Owners:
Kelley Island Lime & Transport Co. #1 "JOHN KING HOWELL", Marblehead, OH
(1930's) Stored out of service at Marblehead
Disposition: (1942) Scrapped for war effort
Additional Notes:
