Lima Locomotive & Machine Co.

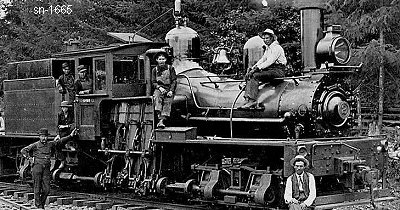

Photo Credit:
Rod Crossley collection
Shop Number 1665 - Built for: Chapman Tbr. Co.
{1,105th Lima Built Shay}
Built:
4-14-1906
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.66
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
64,080
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Chapman Tbr. Co., Portland & Southwestern RR #2, Scappoose, OR
(10-1908/?5-1912) Seaside Lbr. & Mfg. Co. (Seaside Door & Lbr. Co.), Seaside, OR
Coast Range Lbr. Co. #2, Mabel, OR
(3-20-1924) Green Mountain Log. Co. #2, Kerry, OR
(5-1927) K P Tbr. Co. (Knappton Mills & Peninsular Lbr. Co.) #2, Kerry, OR
(5-16-1944) Robert Dollar Lbr. Co. #2, Mabel, OR
Disposition: Scrapped
Additional Notes: Shipped to: Parsons Switch, OR
