Lima Locomotive & Machine Co.

Photo Credit:

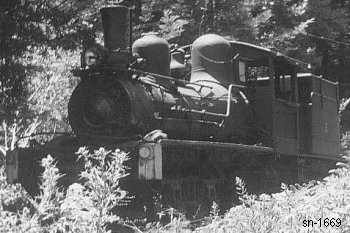

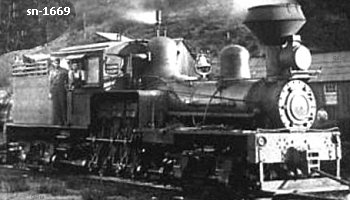

Left: Martin E. Hansen collection - Right: Anderson Valley Historical Society collection
Shop Number 1669 - Built for: Albion Lbr. Co.
{1,109th Lima Built Shay}
Built:
3-27-1906
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,826 Lbs.
Factor of
Adhesion:

4.84
Maximum
Safe Speed:

16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
59,200
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Albion Lbr. Co. #123 later #2, Albion, CA
(5-4-1924) Converted to oil burner
(12-1930) Leased to: Mahoney & Philbrick, Albion, CA
Hyman-Michaels Co. (D), San Francisco, CA
Disposition: (1937) Scrapped
Additional Notes: Southern Pacific owned Albion Lbr. Co.
